Engineered for 100% uptime. Our electrical infrastructure combines dual-source utility power, automated failover, and N+1 redundancy to eliminate single points of failure.

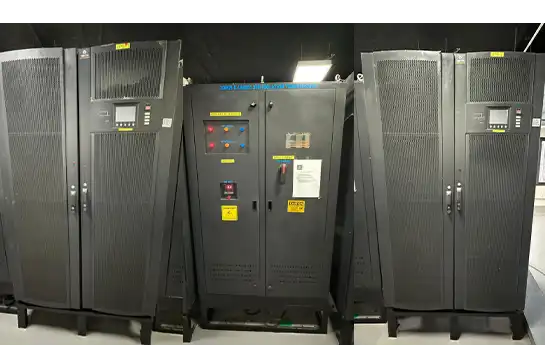

Utility & GenSets

Power Source & Control

Reliability begins at the source. The data center is fed by a dedicated high-tension utility line, backed immediately by an automated Diesel Generator (DG) fleet.

• Automated Transfer Switches (ATS): Seamless transition between utility and generator power without human intervention.
• Low Tension (LT) Panels: Precision-engineered panels for controlled distribution to critical IT loads.
• Dual Transformers: 2000 KVA capacity with automatic failover capability.

Conditioned Power

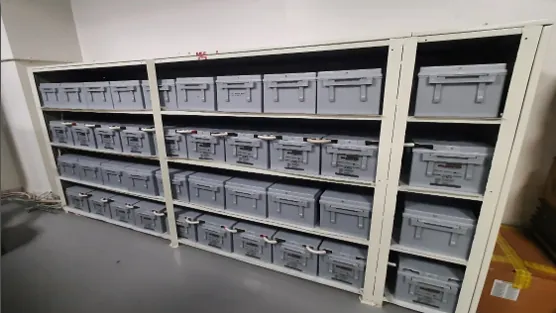

UPS & Clean Power

We employ a modular Online Double Conversion UPS architecture to ensure hardware receives perfectly conditioned sine-wave power, regardless of grid fluctuations.

• Modular Systems: 300 KW modular systems provide clean, uninterrupted power.
• N+1 Redundancy: Systems operate in parallel; if one module requires maintenance, others instantly take the load.
• Isolation Transformers: Every UPS output is isolated to suppress electrical noise and harmonics.

Scalable Delivery

Intelligent Distribution (BBT)

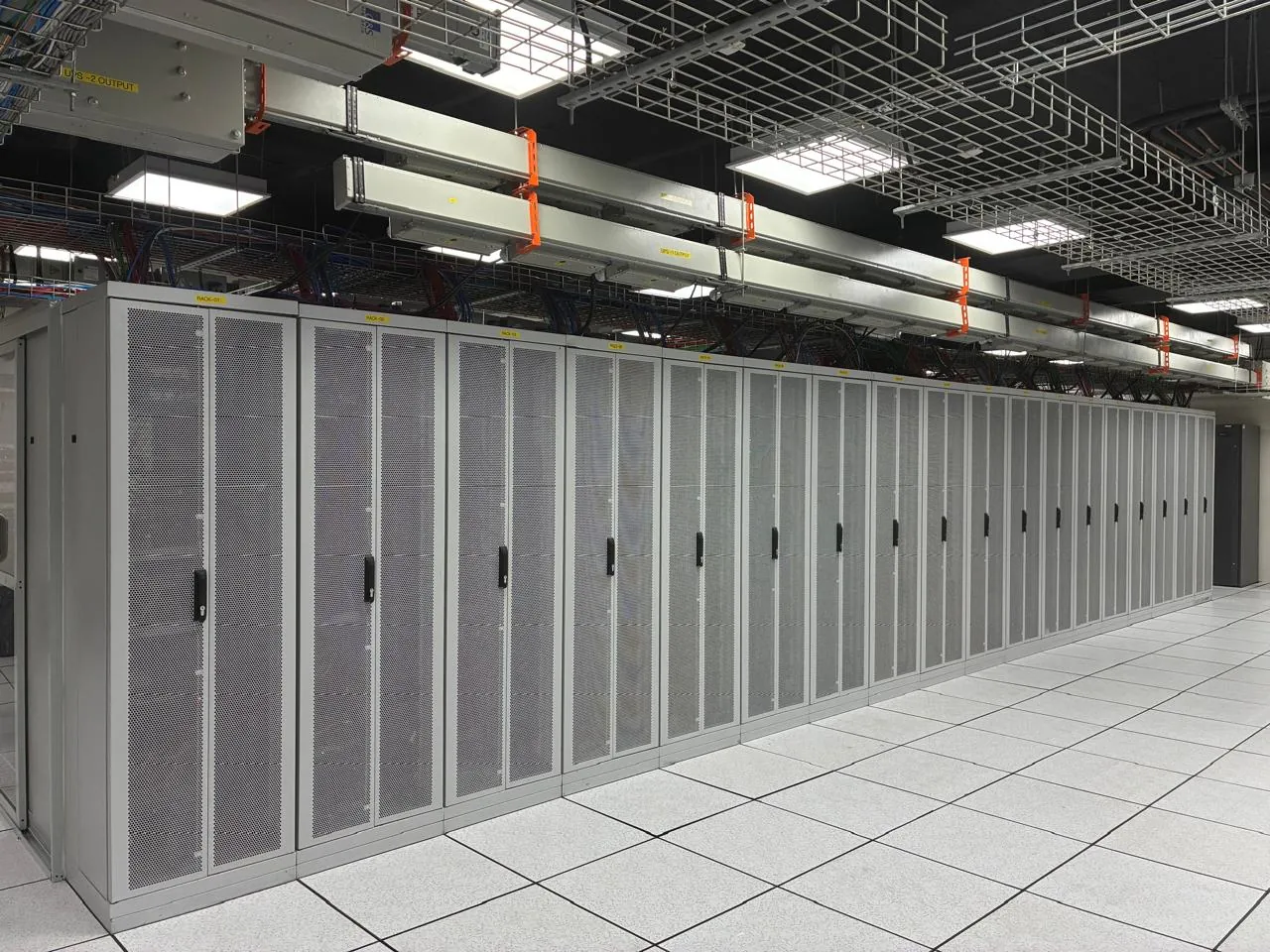

Power is delivered to racks via overhead Bus Bar Trunking (BBT) systems. This modular approach replaces traditional cabling, allowing for safer heat dissipation and easier scalability.

• Flexible Tap-offs: Power drops can be added or moved without shutting down the main bus.
• Load Balancing: Precision distribution units (PDUs) ensure phases are balanced.
• Concurrent Maintainability: Infrastructure can be serviced without impacting live operations.

Engineered for continuous operation. Our cooling infrastructure maintains optimal temperature, humidity, and airflow to ensure the longevity and reliability of your mission-critical IT assets.

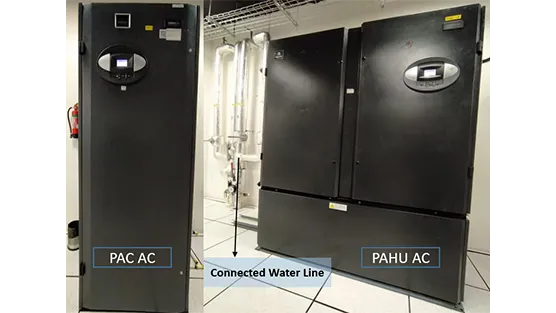

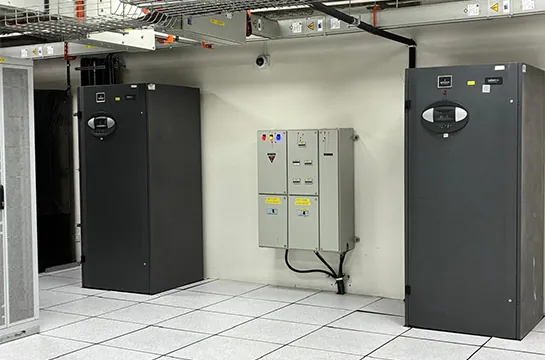

PAC Units

Precision Air Conditioning

Equipped with 4 PAC units specifically for high-density environments. These industrial-grade systems manage temperature and humidity with ±1°C accuracy.

• Industrial Capacity: Heavy thermal loads up to 100KW each.
• Independent Operation: Dedicated outdoor condensers.
• Humidity Control: Maintains 40-60% relative humidity.

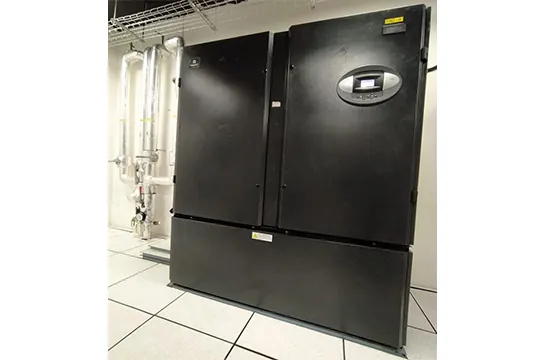

PAHU Units

Precision Air Handling

2 large-capacity PAHU units circulate chilled water to manage heat loads across the entire data hall with superior energy efficiency.

• Chilled Water System: Central plant supplies water at 7°C.
• Variable Speed Drives: Reduces energy consumption by up to 40%.
• N+1 Redundancy: Ensures cooling continuity during maintenance.

Monitoring

Environmental Control

Comprehensive monitoring system tracks temperature, humidity, and airflow across all zones. Real-time alerts notify engineers of any deviations.

• Temperature Mapping: 3D thermal mapping identifies hotspots.
• Airflow Management: Raised floor plenum for efficient distribution.
• 24/7 Resilience: Built for continuous operation without degradation.

Multi‑layered safety systems designed to detect, alert, and protect against physical, environmental, and security threats 24/7.

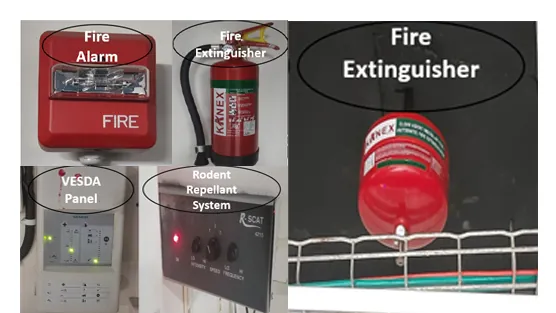

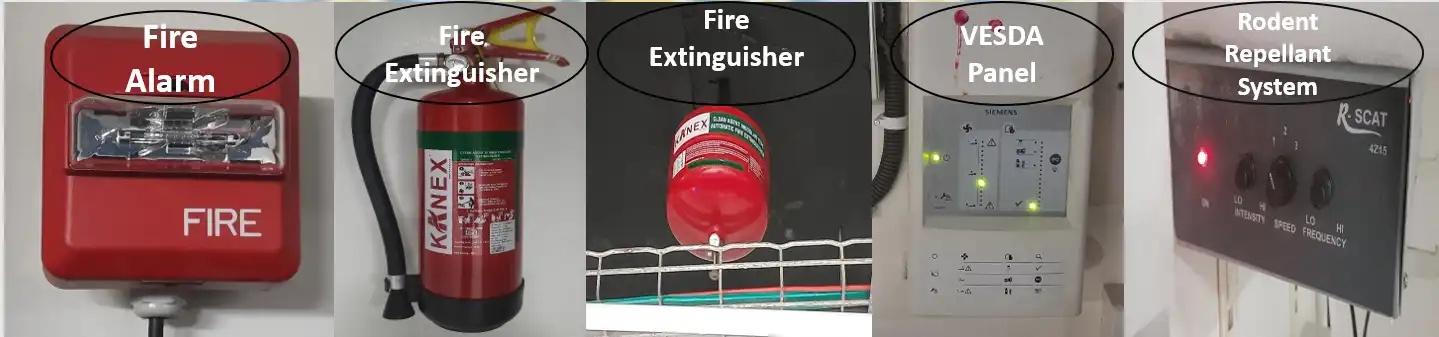

Fire Safety

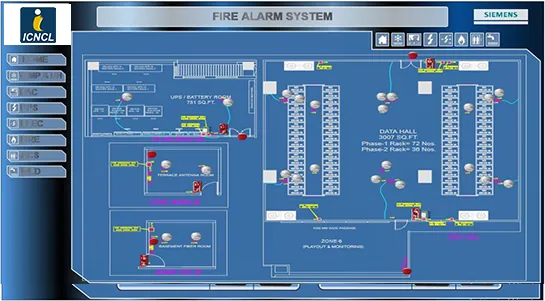

Fire Detection & Suppression

VESDA (Very Early Smoke Detection Apparatus) identifies smoke particles long before traditional detectors. Combined with FM-200 clean agent suppression, it protects equipment without water damage.

• VESDA System: Continuous air sampling for ultra‑early warning.
• FM‑200 Clean Agent: Extinguishes fire safely.
• Automatic Shutdown: Isolates affected zones electrically.

Environment

Water Leak Detection

Digital water‑leak detection cables under raised floors and around cooling units detect moisture presence immediately, providing precise zone-based location identification.

• Zone‑Based Detection: Logical zones for precise leak pinpointing.
• Immediate Alerts: Automated SMS/email alerts to managers.

Access Control

Physical Security Operations

Multi‑factor authentication and 24/7 surveillance ensure only authorized personnel access sensitive areas, exceeding industry standards.

• Biometric Access: Fingerprint/iris scanners at critical entry points.
• Mantrap Portal: Two‑factor authentication between secure zones.

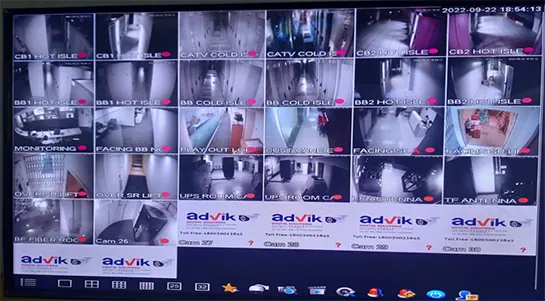

• 24/7 CCTV: High‑definition cameras with 90‑day archival storage.
• Motion Detection & Perimeter: Advanced sensors and intrusion detection.

Centralized, real‑time oversight of all infrastructure components through an Integrated Building Management System (IBMS) with proactive alerting and historical analytics.

Core Intelligence

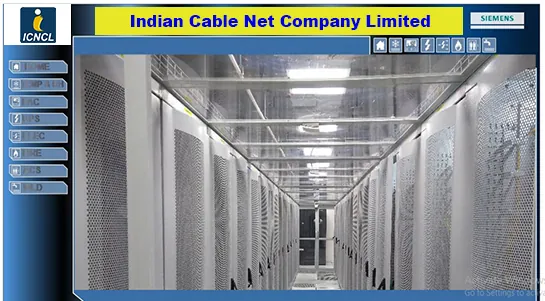

Integrated Building Management (IBMS)

The IBMS serves as the central intelligence of the data center, monitoring UPS health, power, cooling, fire, and CCTV into a single pane of glass.

• Real‑time Dashboards: Customizable KPIs.
• Predictive Analytics: Machine learning identifies potential failures before they occur.
• Historical Analysis: Stores up to 15 months of data.

Efficiency Tracking

Power & Energy Monitoring

Comprehensive monitoring of electrical parameters at every distribution level for optimal energy utilization and efficiency tracking.

• PUE Calculation: Real-time Power Usage Effectiveness metrics.
• Load Balancing: Automatic phase balancing and peak shedding.
• Automated Reports: Scheduled compliance reporting.

Environmental

Environmental Tracking

• Air Quality: Particulate matter & gaseous contaminants.
• Predictive Maintenance: Alerts for filter changes based on pressure differentials.
• Vibration Monitoring: Detection in critical equipment.

Surveillance

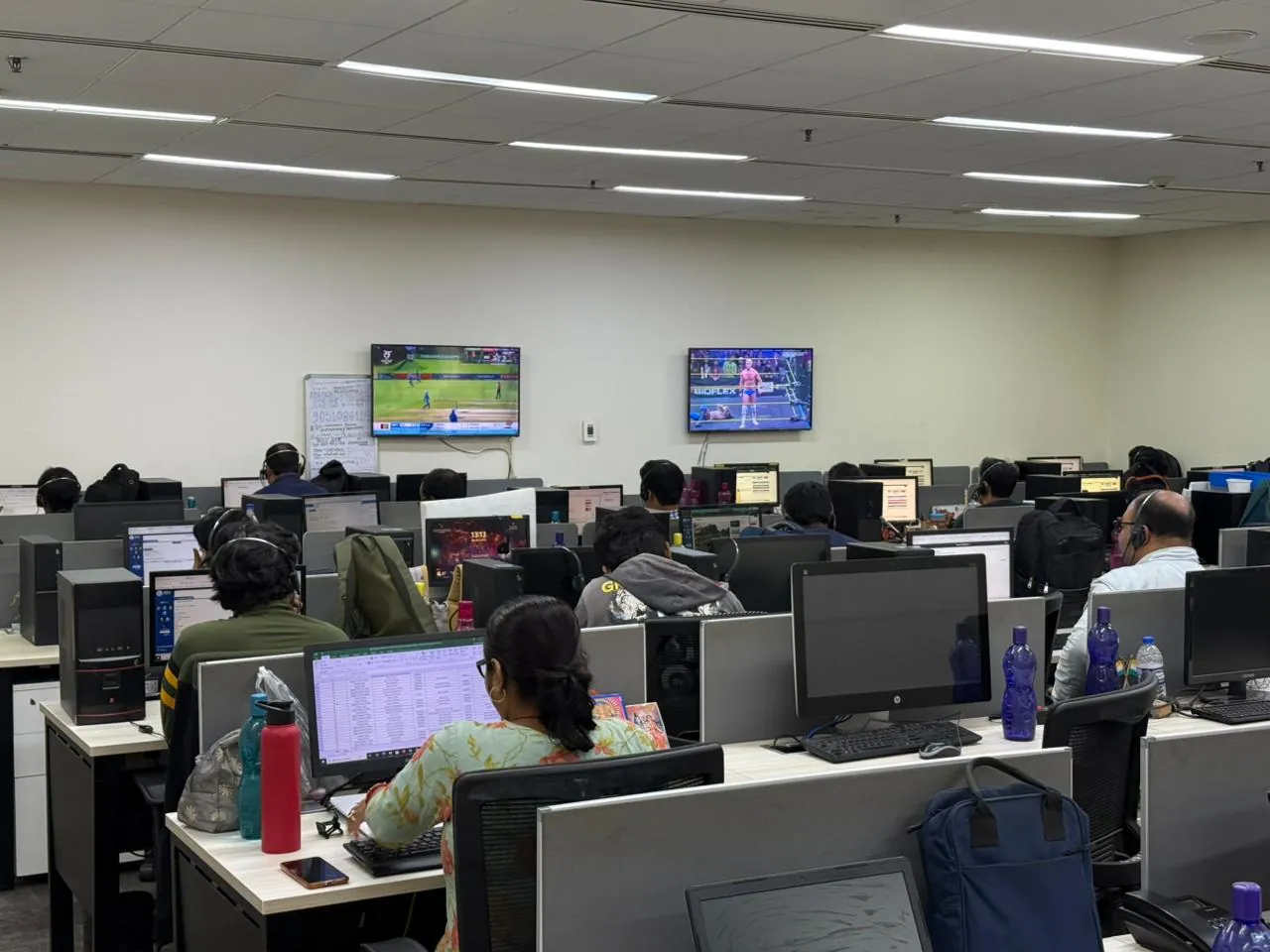

24x7 Security Operations Center

• Full Coverage: Aisles, NOC, entrances monitored with HD cameras.
• Motion Analytics: AI-powered behavioral analysis.
• Incident Response: Automated incident logging and response protocols.
